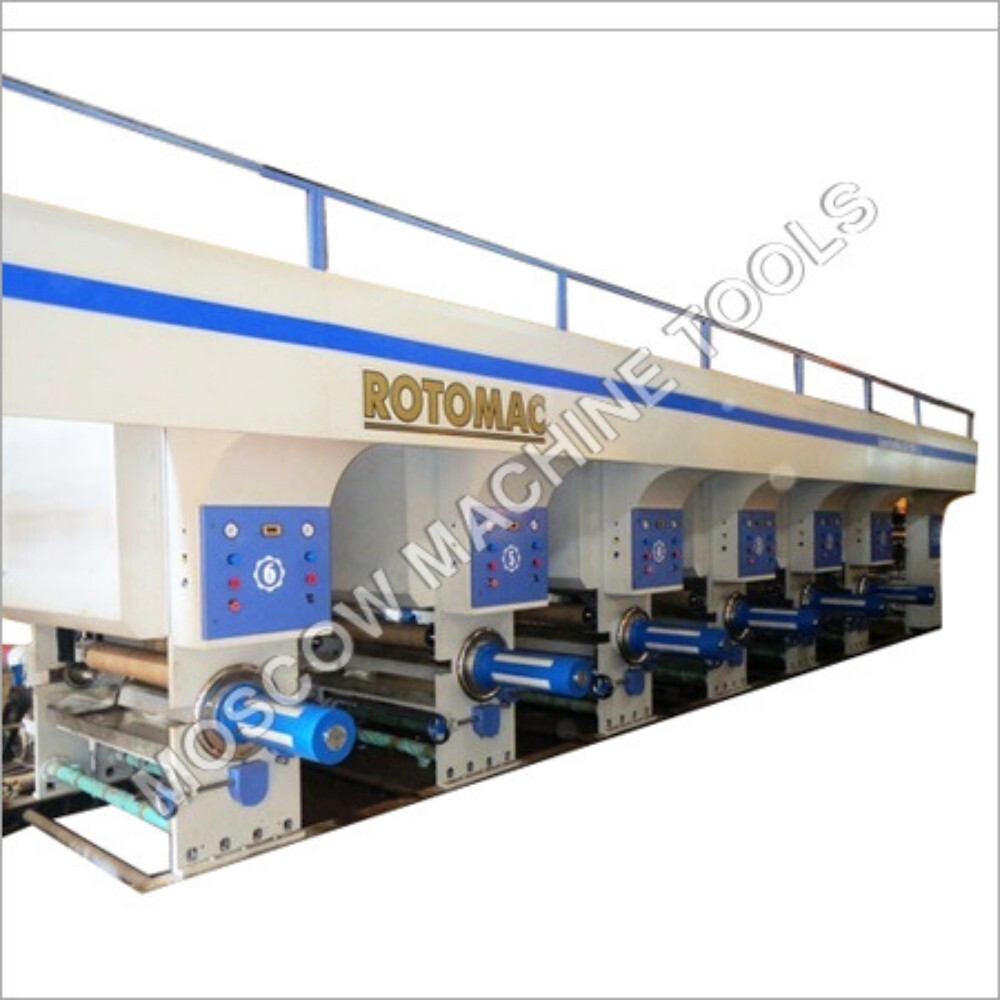

Shaftless Rotogravure Printing Machine

Name: Shaftless Rotogravure Printing Machine
Brand: MOSCOW MACHINE TOOLS
Price: 8800000 INR
Availability: InStock

Price 8800000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Shaftless Rotogravure Printing Machine Specification

Type
Shaftless Rotogravure Printing Machine

Material
Mild Steel / Stainless Steel

Capacity
Up to 150 m/min (varies by model)

Computerized
Yes

Automatic Grade
Automatic

Plate Type
Rotogravure Cylinder

Print Direction
Both Side

Control System
PLC Touch Screen Control

Power
Three Phase, 380V / 220V, 50Hz

Size
Standard / Customized

Weight (kg)
Approx. 6500 kg

Dimension (L*W*H)
Approx. 12000mm x 3200mm x 2650mm

Drive System
AC Vector Motor With Inverter

Voltage
380V/220V, 50Hz

Material Thickness
From 10 to 100 microns

Drying System
Hot Air Circulation With Blower

Register Control
Automatic Electronic Line Guiding

Max Roll Diameter
1000 mm

Tension Control
Automatic Web Tension Control

Substrate Width Range
Up to 1300mm

Application
Flexible Packaging, Films (PET, BOPP, PVC, Paper, Foil)

Doctor Blade System
Chambered Doctor Blade

Unwind/Rewind Type
Shaftless Pneumatic Chuck

Noise Level
75 dB

Shaftless Rotogravure Printing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
Unit

Delivery Time
2 Months

Packaging Details
Open Packaging.

Main Export Market(s)
Western Europe, Africa, Central America, Middle East, South America, Asia, Eastern Europe, North America, Australia

Main Domestic Market
All India

About Shaftless Rotogravure Printing Machine

The offered Shaftless Rotogravure Printing Machine is used in many industries to print on various types of packages. Outfitted with a modern machine, we are the most prominent manufacturer and supplier of a wide array of machine. This machine is designed and manufactured using premium quality components and the latest techniques in line with set international standards. Provided machine is tested on various parameters to conform its quality and functionality. Furthermore, we provide this Shaftless Rotogravure Printing Machine to clients at nominal prices.

Features:

High speed
Rust proof
Smooth finish
Excellent functionality

Details:

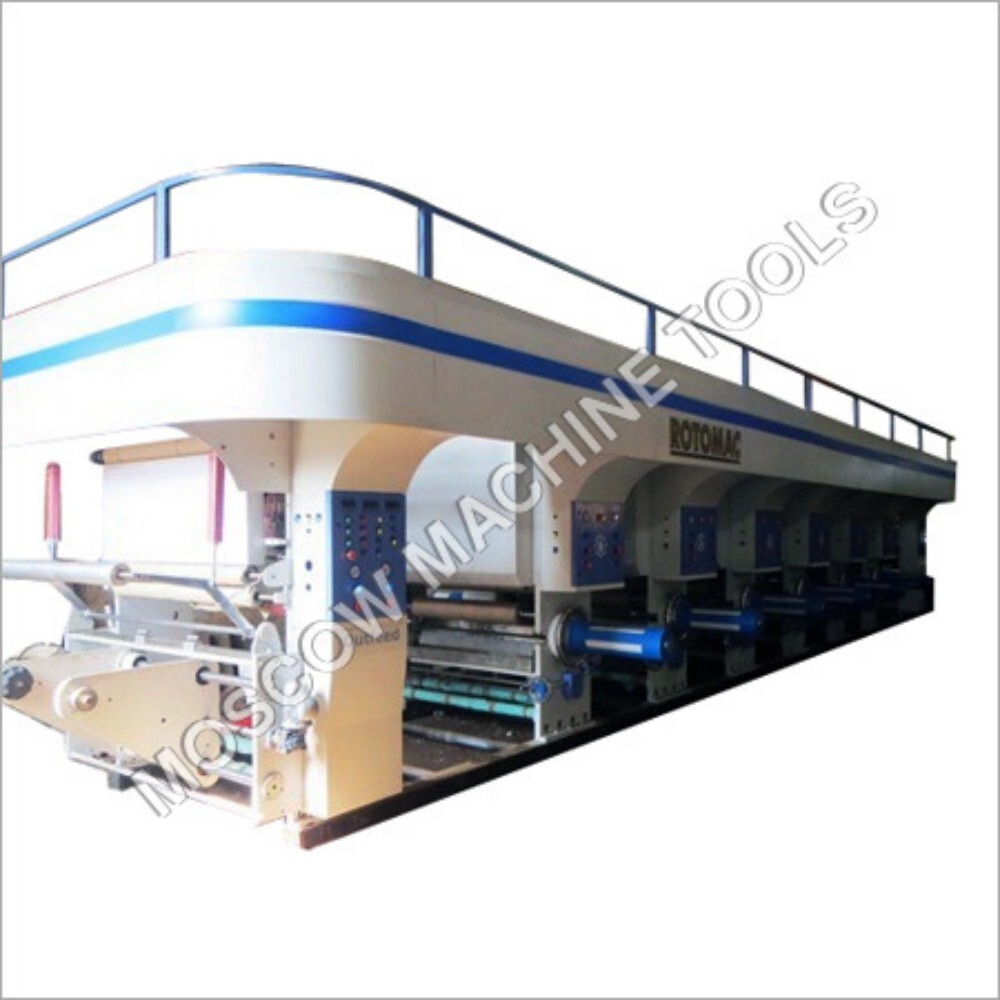

Heavy Duty Shaftless Rotogravure Printing Machine (High speed Machine) speed upto 200 mtr/min. in Multicolours. Flotter type (Shaftless) unwind and rewind with 5 Drive A.C moter system with synconisation panel.

Precision Shaftless Handling System

The shaftless pneumatic chuck provides seamless and secure handling of unwind and rewind rolls, reducing changeover time and improving efficiency. This technology enables faster setup and minimizes operator intervention, making it ideal for high-volume, continuous flexible packaging print runs.

Advanced Drying for Superior Finish

Equipped with a hot air circulation system and blower, the machine ensures rapid, uniform drying of printed films and substrates. This guarantees vibrant, smudge-free prints even at top speeds, and accommodates a wide range of thicknesses and materials, from paper and PET to aluminum foil.

Automated Web & Register Control

Automatic web tension control stabilizes substrate flow throughout the printing process, while electronic line guiding ensures accurate registration. The intelligent PLC touch screen system makes operation intuitive and helps minimize waste and errors, resulting in consistent, high-quality output.

FAQs of Shaftless Rotogravure Printing Machine:

Q: How does the shaftless pneumatic chuck system improve production efficiency?

A: The shaftless pneumatic chuck enables quick and easy changes of material rolls for both unwind and rewind operations. This reduces downtime, accelerates changeover processes, and ensures secure roll handling without manual shaft installation, resulting in increased productivity for continuous print jobs.

Q: What types of materials can the Shaftless Rotogravure Printing Machine process?

A: This machine is versatile and can handle flexible packaging substrates such as PET, BOPP, PVC, paper, and foil, with thicknesses ranging from 10 to 100 microns. The maximum workable substrate width is up to 1300 mm, making it suitable for various packaging applications.

Q: When is automatic web tension control necessary during printing?

A: Automatic web tension control is essential throughout the printing process to maintain consistent substrate flow. This feature prevents wrinkling, stretching, or misalignment during high-speed runs, ensuring that the quality and registration of the print remain precise and reliable.

Q: Where can the Shaftless Rotogravure Printing Machine be installed and who typically uses it?

A: The machine is designed for installation in packaging manufacturing facilities, printing companies, and trading firms across India. Manufacturers, suppliers, and traders involved in flexible packaging production are the primary users of this equipment.

Q: What is the process for maintaining optimal print registration using this machine?

A: Print registration is maintained via an automatic electronic line guiding system which constantly monitors and adjusts the position of the substrate in real-time. This results in sharp, accurately aligned prints, reducing waste and enhancing output consistency.

Q: How does the hot air circulation drying system benefit the printing process?

A: The hot air circulation system ensures fast and uniform drying of inks across various substrate types. This enables high-speed operation without risking smudges or incomplete drying, thus maintaining clear and vibrant prints.

Q: What are the main usage and key benefits of this rotogravure printing machine?

A: Main usages include high-volume printing for flexible packaging and films. Key benefits are automated operation, precise control, low noise, easy changeovers, and consistent print quality, all of which contribute to high productivity and reduced operational costs.
